SLATWALL QUOTE SHEET

This email address is being protected from spambots. You need JavaScript enabled to view it.

client details

name *
company *
address *
city/state *
phone
Email *
quantity *
size *
**Note - Size (Standard Size: 4’ x 8’)

SLATWALL ORIENTATION

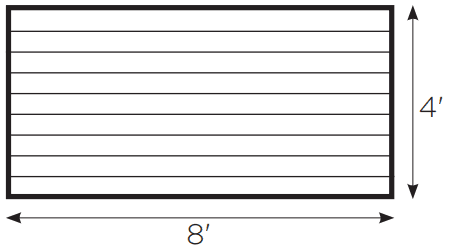

Horizontal
slatwall orientation
Horizontal orientation is recommended to apply wall and is the least expensive. The grooves run the long direction.

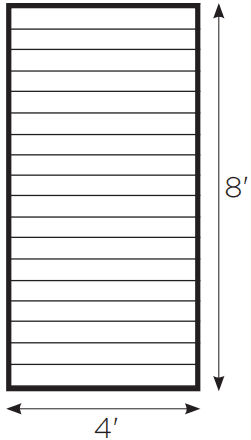

Vertical
slatwall orientation
Vertical orientation is used to place slatwall in narrower areas and used often for making store fixtures. The grooves run in the short direction.

EDGE FINISH

Half Lap Both Ends

2 half grooves For stacking on both ends

Half Lap One End

One half groove square and one square end for stacking

Flat on Both Ends

Square end on both top and bottom

SLATWALL ON-CENTER GROOVE SPACING

3" O.C. is our standard groove spacing and will be most economical however multiple space options are available (3" from the center of one groove to the center of the next groove)

slatwall orientation

CORE MATERIAL - 3/4"

SLATWALL SURFACE FINISH

If other, please specify:

SLATWALL GROOVE INSERTS

If other, Please specify:

NOTE ANY CUSTOM REQUIREMENTS

*** CUSTOM OPTIONS ***
  • Slatwall panels routed to custom shapes
  • Custom margins and spaces
  • Holes drilled in slatwall panels to specifications
  • Edge finishing including edge banding
